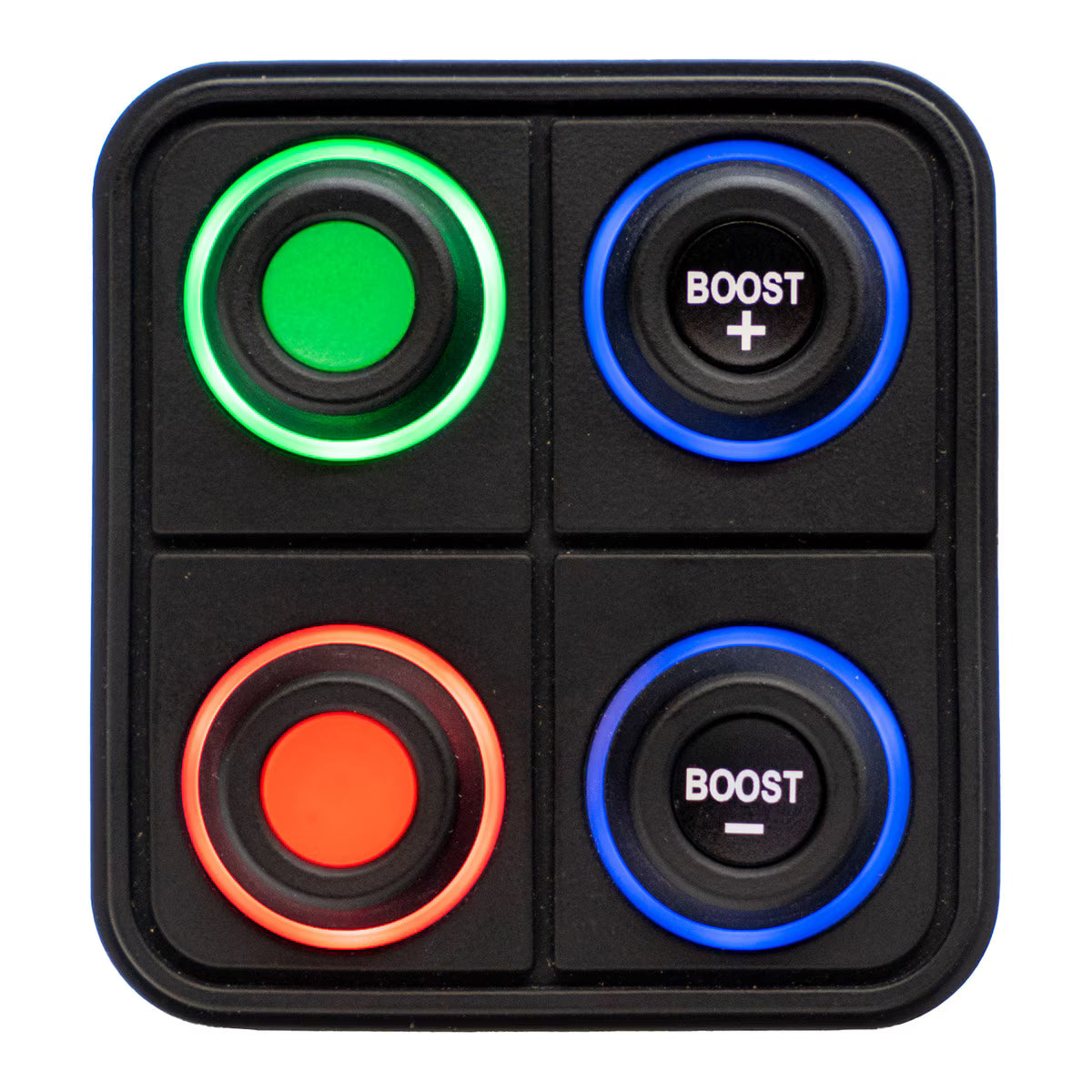

Link CAN Keypad 4-button - Image 1 by LinkECU

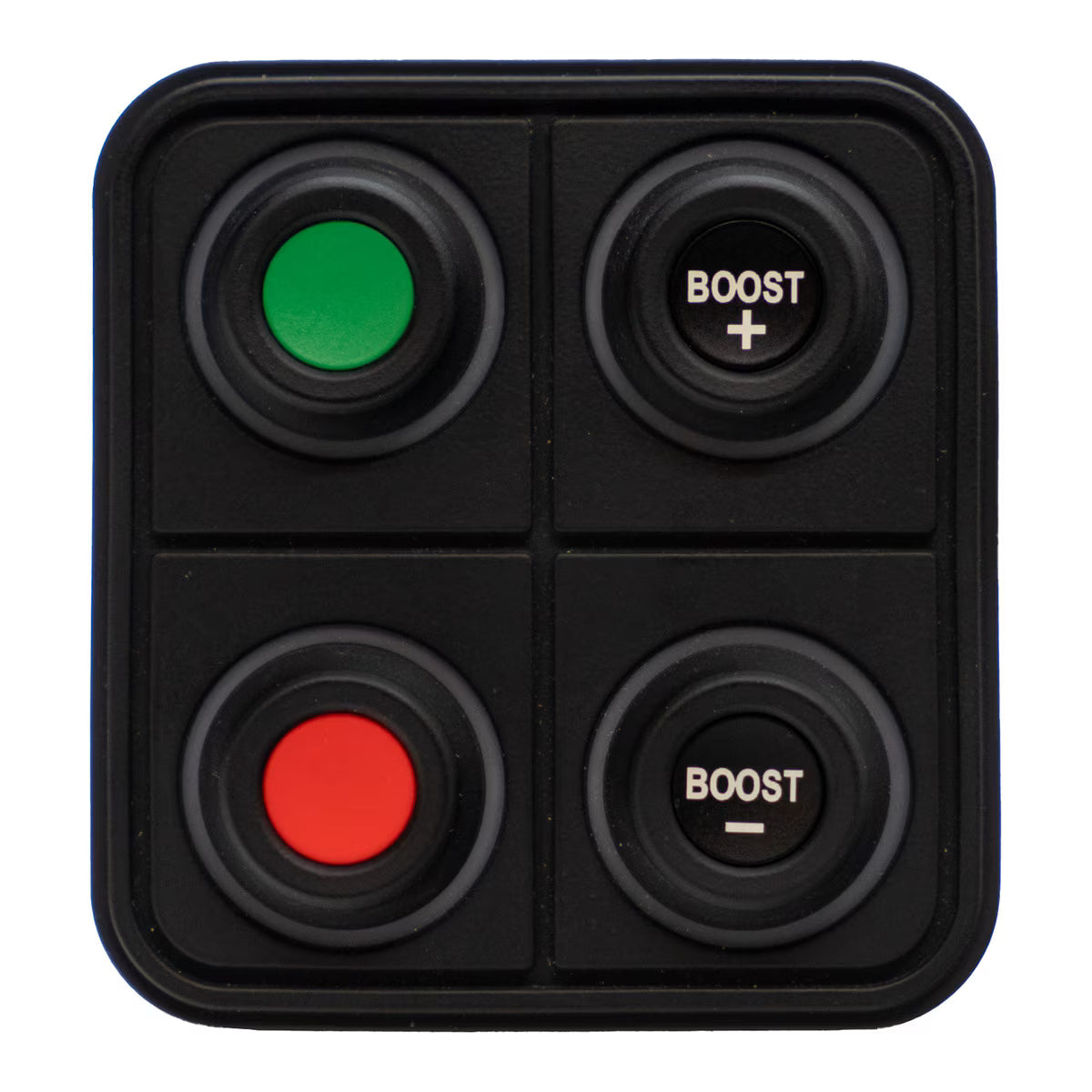

Link CAN Keypad 4-button - Image 2 by LinkECU

LinkECU

Link CAN Keypad 4-button

$470.25 AUD $495.00 AUD

Price includes GST | Shipping calculated at checkout

No reviews
No reviews
Quantity:

Stock Availability:

If stock information is shown, it should be up-to-date, if not then this product is not currently stock-tracked and if you would like information regarding stock levels, please contact us directly.

Pickup available at Cherry Tuning and Performance - Pending Stock Availability

Link CAN Keypad 4-button

Cherry Tuning and Performance

Pickup available, usually ready in 2-4 days

22 George Street
Clyde NSW 2142
Australia

+611800954234

Rugged 4 key CAN Keypad with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.

The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.

Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features:

  • CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
  • Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
  • IP67/IP69K Waterproof rating – Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs.
  • Compatible with all G4X ECU’s. Built-in support from G4X PC Link vers 6.22 onwards

Box Contents:

  • 4 Button CAN Keypad
  • DTM4 Mating Connector Kit
  • Link Sticker
  • Keypad Button Insert – Link Logo
