Hyundai i30N - Dual Catch Can and Coolant Expansion Tank
Finish
Please Note:
We currently do not have the ability to display stock availability on our website. We are working on a solution, however in the meantime if you need to be sure of stock before purchasing your product, please be sure to contact us to confirm availability!
These are currently shipped to order, expect lead times from the UK to AU
Note: They will bolt onto the SR/N-Line however the hose lengths will be wrong, you will have to custom-make hoses.
Here we present FMCT5, a twin catch can and coolant expansion tank system. This design has been subject to a vast amount of development and is a one of a kind product in the marketplace.

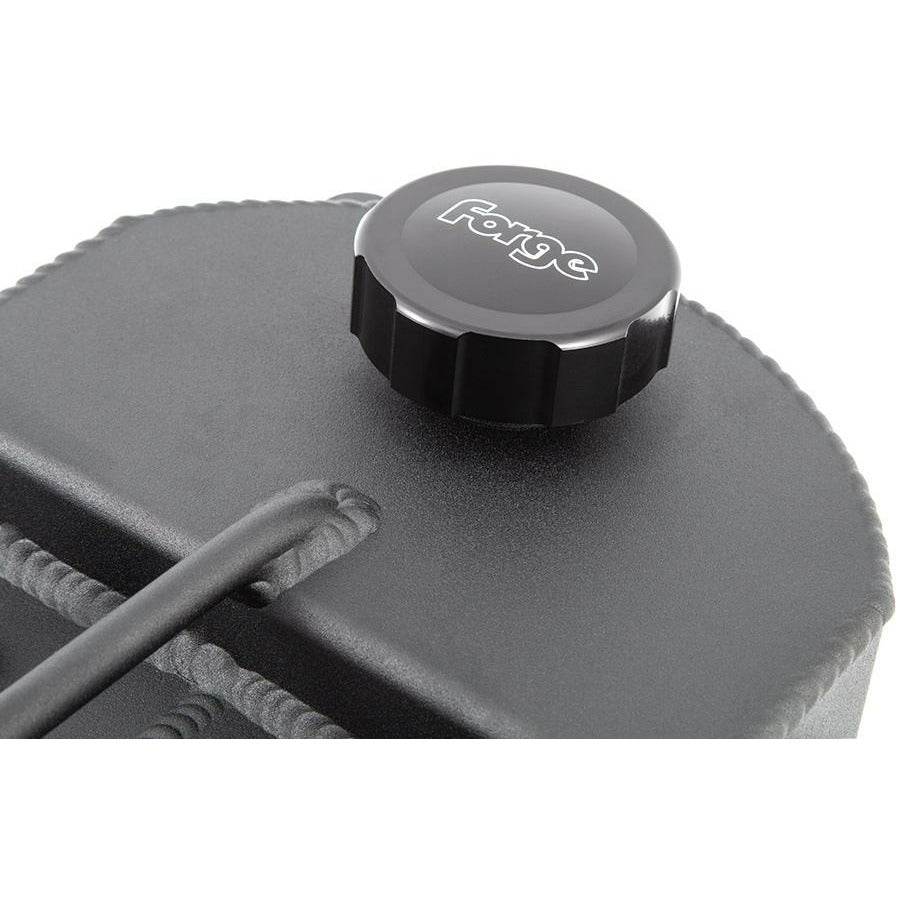

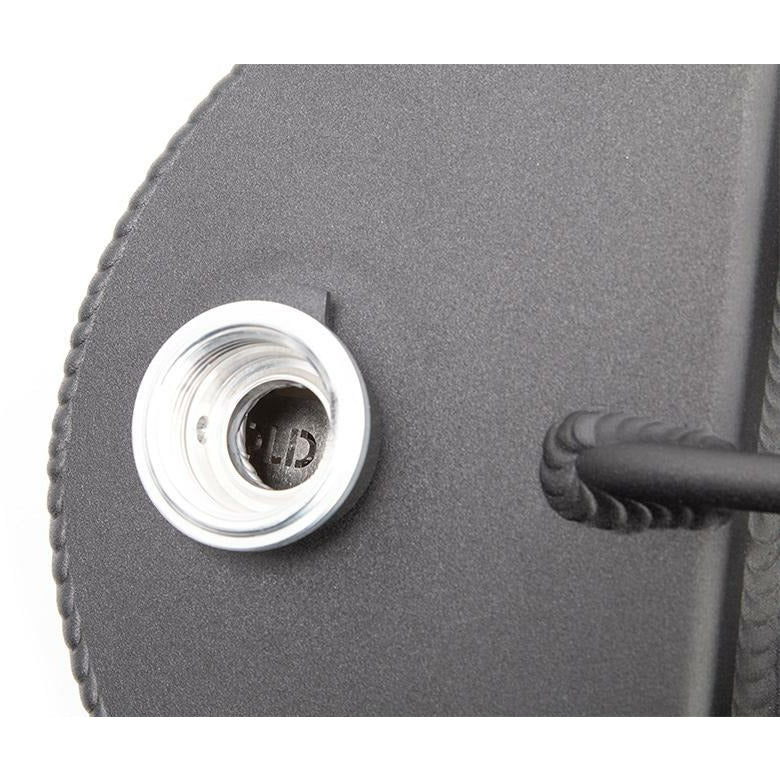

The FMCT5 is a direct replacement for the OE coolant expansion tank. The CAD laser cut alloy construction is skilfully welded at Forge UK HQ. The expansion tank has a level indicator inside the filler neck, to make topping up easier, we have also machined a cap cover that slots over the top of the OEM cap to add to the premium look.
The twin catch can system is the definitive solution to effectively reduce sludge and carbon build up, in turn allowing the engine to both breathe and perform more efficiently. It can therefore be viewed as a genuine performance enhancing product and one, we recommend, particularly if you are planning more advanced power tuning in the future.
Our system filters both PCV and intake breather systems to help keep your engine clean from harmful contaminants, including oil deposits, unused fuel vapours and moisture, which would ordinarily make their way back through to the inlet of the engine. All of this is now collected in the catch cans.
There is a dip stick for each tank to measure the amount of deposit caught, this opening can also be used to pump out the captured contaminants or alternately you can use the drain plugs at the bottom of the tanks.
As with all Forge Motorsport products we have used superior braided hoses which are internally constructed from anti-static smooth fuel resistant nitrile rubber. This is combined with an outer cover made from reinforced stainless-steel wire braid (a Forge specialty), specifically a partial inner braid and a full cover outer braid. We developed this complex arrangement in order for the tank to be resistant to both pressure expansion and vacuum collapse, and also to enable the kit to function within a clearly defined temperature range – 54°C to +150°C (-65°F to 300°F).
The FMCT5 is available in raw aluminium finish or our stealthy textured black powder coat finish.
Highlights
- A drain plug for ease of emptying
- Coolant level indicator
- Integrated dipstick’s for simple level inspection
- CNC machined anodised coolant cap cover
- Premium Quality stainless steel reinforced oil resistant hoses with black external braiding
- Inner tube is constructed from anti-static smooth fuel resistant nitrile rubber
- Outer cover is constructed from reinforced Stainless-Steel wire braid consisting of partial inner braid & full cover outer braiding which is resistant to pressure expansion and vacuum collapse
- Temperature Range: -54°C to +150°C (-65°F to 300°F)
- The engine cover can still be fitted after installation

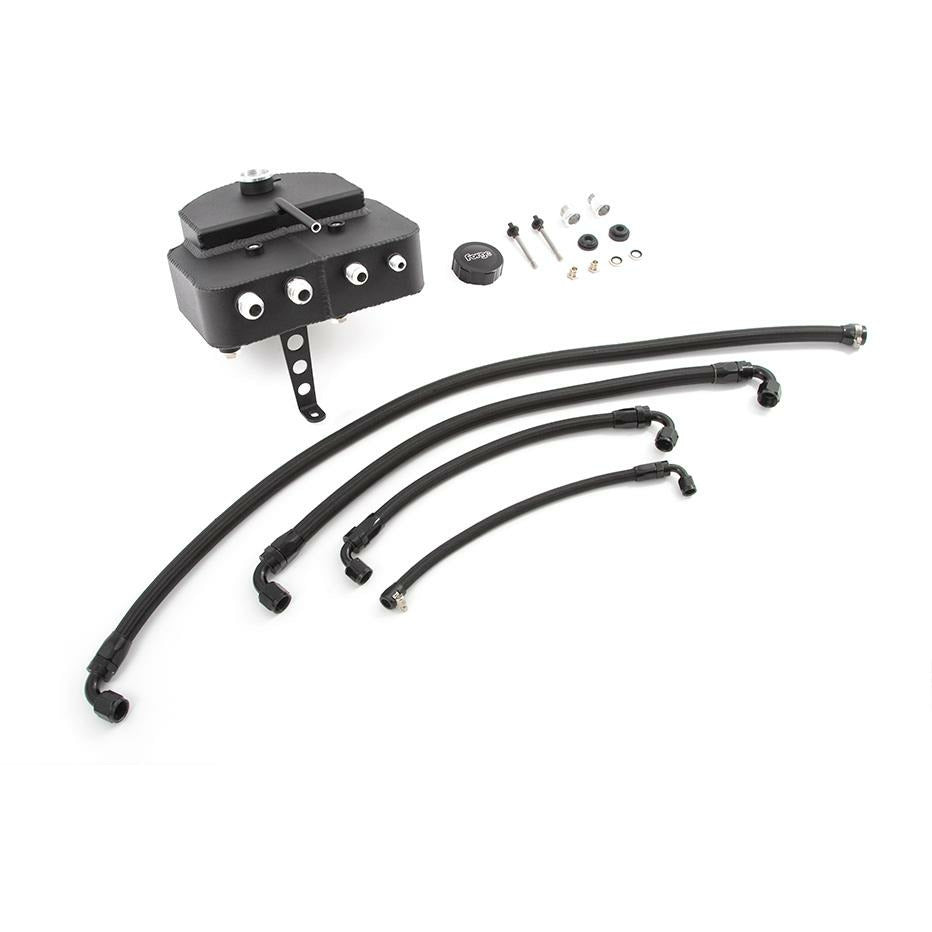

- Installation is straight forward with all necessary fittings and Forge detailed instructions included.
No claims are made with regard to the legality of using any parts supplied by Cherry Tuning Pty. Ltd.
Parts are supplied for off-road use only and it is the responsibility of the customer to confirm with their local government regarding the legality of installing any parts for road use.
