Available to order

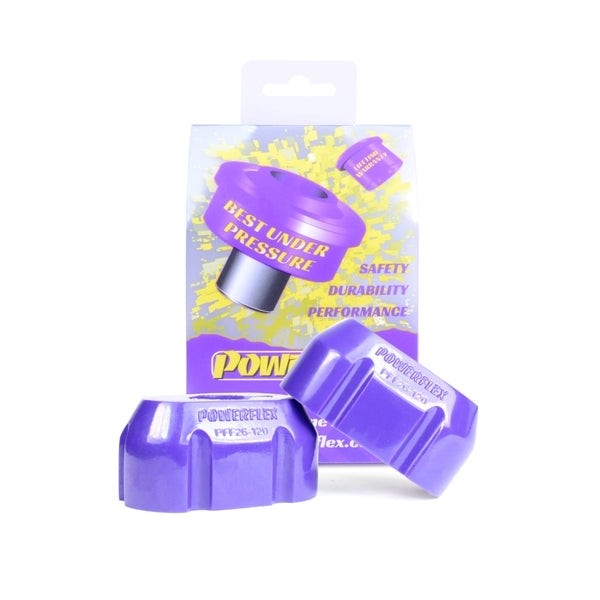

Lower Torque Mount (Pitch Stop) Bush

Powerflex

$74.00 inc.

Bush TypePurple

Purple Red Black

This is a stock-managed product, meaning stock levels are generally kept up-to-date.

If this product is showing "out of stock" then we will likely need to order it in for you.

If you have any questions, it's best to contact us here

Australia-wide shipping from our Clyde workshop
Fitment & tuning advice from real technicians
Secure checkout — card, PayPal, Afterpay & more

Product details

The Hyundai and Kia lower torque mount bush replaces the original rubber bush for increased engine stability under acceleration and boosts the torque reaction of the mount for improved acceleration response. A slight increase in NVH should be expected but improved control of wheel spin/hop is achieved.

Powerflex's special polyurethane is an advanced material with unique properties. Upgrade your Hyundai or Kia with high performance bushings, bushings that won't cause excessive vibration or noise (this is Powerflex's claim, not ours) and include a Lifetime Warranty!

Why Powerflex Bushes?

Increased Tyre Life
Improved Performance
Increased Safety
Lifetime Warranty

To suit the variable requirements of the different drivers, these parts are available in four different ratings of shore hardness to balance performance requirements. Whilst an increase in material stiffness will reduce engine movement, additional noise and vibration maybe felt.

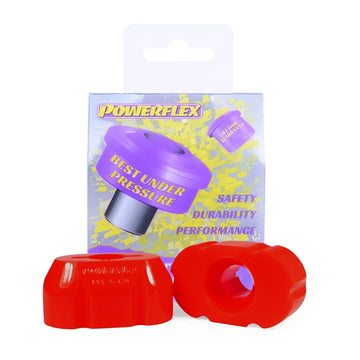

Red has only a small increase in NVH, designed for us with diesel vehicles.
Yellow Shore A 70 is an upgraded replacement for the original bush, recommended for fast road use
Purple Shore A 80 is a stiffer material to suit higher powered cars that may be used on the track

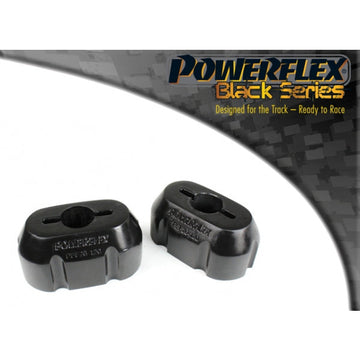

Black Shore A 95 is our Black Series part for extreme Track and Motorsport applications for ultimate engine stability

Graph showing Load vs Displacement of each of our materials compared with the original, rubber bush.

Installation Guide

Please download the installation guide here.

Torque Spec

Roll rod bracket to sub frame (Pitch Mount 14mm bolts) - 49.0 - 63.7 Nm / 36.2 - 47.0 ft.lbs
Roll rod bracket to roll rod support bracket fixing bolt & nut (17mm bolt with nut) - 107.8 - 127.4 Nm / 79.5 - 94 ft.lbs

Suits the following cars

Kia Proceed JD (2012-2018)
Kia Cerato BD (2018+) - Inc. GT
Hyundai Elantra AD (2015 - 2019)
Hyundai i30 Sedan CN7 (2020+) - Inc. N
Hyundai Kona OS (2018+) - Inc. N
Hyundai i20 BC3 (2018 on) - Inc. N
Hyundai i30 GD (2012 - 2015)
Hyundai i30 PD (2017+) - Inc. N
Hyundai Veloster FS (2011 - 2017)
Hyundai Veloster JS (2018 on)

Disclaimer

No claims are made regarding the legality of any parts for road use. Parts are supplied for off-road/competition use only — it is the customer's responsibility to confirm local regulations before fitting parts for road use.
